PRODUCT INFORMATION
For products with 4x10GbE, please note an additional lead time of 4ā6 weeks. Contact us for more information.

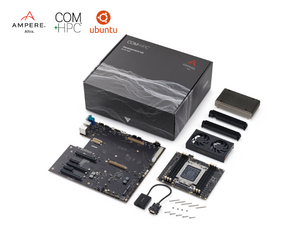

Ampere Altra Developer Platform -Ā COM-HPC reference development platform based on Ampere Altra SoC. AADP is a prototyping system targeting general embedded applications based on the COM-HPC Ampere Altra module and a reference carrier board, the COM-HPC Server Base. The system allows customers to quickly emulate the functionality of their end product for software development and hardware verification.
SYSTEM INCLUDING:
Com-HPC system consisting of
- AADP-32: COM-HPC Ampere Altra server type module with Ampere Altra 32-core Q32-17 SoC and 2x16GB 3200MHz DDR4 ECC Reg and 128 GB NVMe M.2 storage
- AADP-64: COM-HPC Ampere Altra server type module with Ampere Altra 64-core Q64-22 SoC and 4x16GB 3200MHz DDR4 ECC Reg and 128 GB NVMe M.2 storage
- AADP-96: COM-HPC Ampere Altra server type module with Ampere Altra 96-core M96-28 SoC and 6x16GB 3200MHz DDR4 ECC Reg and 256 GB NVMe M.2 storage
-
AADP-128: COM-HPC Ampere Altra server type module with Ampere Altra 128-core M128-26 SoC and 6x16GB 3200MHz DDR4 ECC Reg and 256 GB NVMe M.2 storage
- COM-HPC Server Base carrier board
- 1x GbE LAN port + 4x 10GbE LAN ports (optional)
- Liquid cooling assembly
- 750W power unit
- Tower enclosure
- Pre-installed Ubuntu Server OS
SPECIFICATIONS:Ā
Ampere Altra SoC (Arm Neoverse N1 based architecture), 32 Arm v8.2 64-bit cores up to 1.7GHz (AADP-32) or 64 Arm v8.2 64-bit cores up to 2.2GHz (AADP-64) or 96 Arm v8.2 64-bit cores up to 2.8GHz (AADP-96) or 128 Arm v8.2 64-bit cores up to 2.6GHz (AADP-128). 2x16GB (AADP-32) or 4x16GB (AADP-64) or 6x16GB (AADP-96/AADP-128) DDR4 memory, 128GB NVMe storage (AADP-32/64) or 256GB NVMe storage (AADP-96/128), 64x PCIe Gen4 lanes (3 x16 available), 4x 10GbE (optional) and 1x GbE LAN, 4x USB 3.0/2.0 [rear I/O], 2x USB 3.0 [front panel], open source EDKII, pre-installed Ubuntu Server OS.
