Ampere Altra Dev Kit
HOW IT WORKS

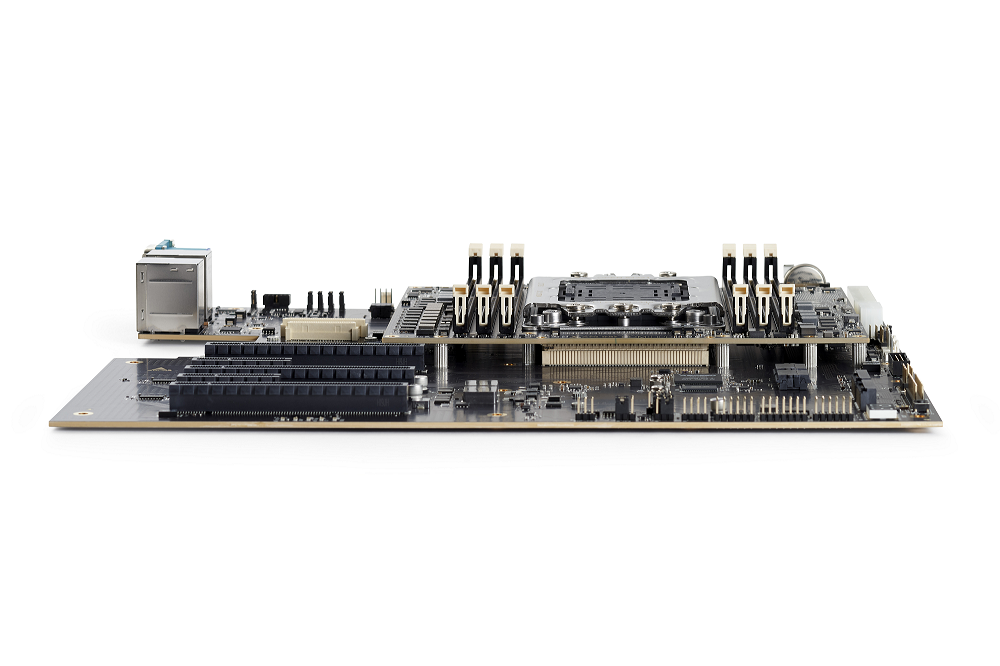

Ampere Altra Dev Kit consists of a COM-HPC Server base carrier paired with a COM-HPC Server type module.
The module features Ampere® Altra® SoC (Arm Neoverse N1-based architecture) harnessing 32/64/96/128 Arm v8.2 64-bit cores for up to 1.7/2.2/2.6/2.8 GHz and providing support for up to 768GB DDR4 memory, offering unprecedented performance and power per watt with exceptional scalability.
Modules are specifically designed for typical industrial embedded applications that require long life, high MTBF, and strict revision control.
PRODUCT INFORMATION
IoT Prototype Kit based on Ampere Altra

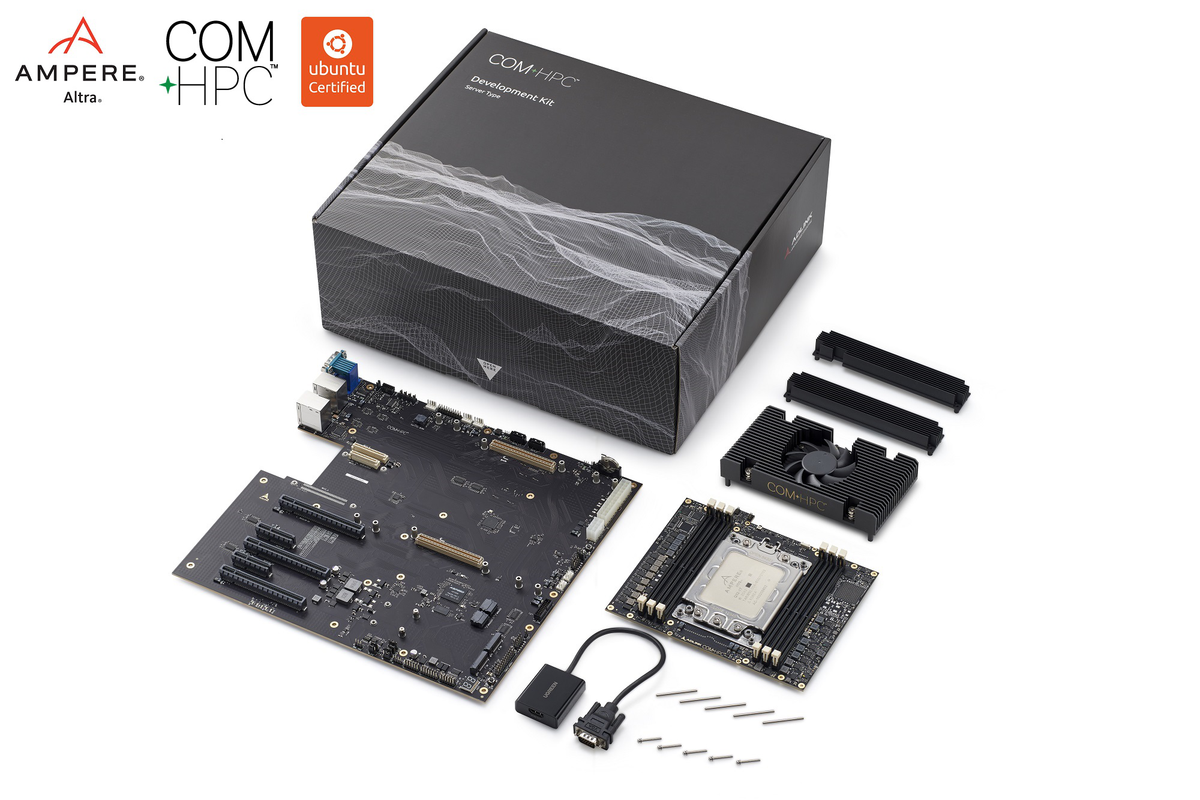

SYSTEM CONFIGURATION:
- COM-HPC-ALT Server Type Size E Module with Ampere® Altra® SoC
- COM-HPC Server Base carrier
- THSF-ALT-BL-S heatsink with fan
- 2x Power part heatsinks
- VGA to HDMI adapter
- I/O Shield
SPECIFICATIONS:
COM-HPC module with Ampere® Altra® SoC (Arm Neoverse N1-based architecture), 32/64/96/128 Arm v8.2 64-bit cores up to 1.7/2.2/2.6/2.8 GHz, with support for up to 768GB DDR4 memory.
COM-HPC Server base supporting up to 3 x16, 2 x4 PCIe slots, 2x M.2 storage connector, VGA, 1x GbE LAN, 4x USB 3.0/2.0 [rear I/O], GPIOs, and other management buses.
Note: Memory, storage, and power supply not included.
COM-HPC Modular Architecture
COM-HPC is the new PICMG standard for high-performance Computer-on-Modules. It aims to drive the newest breed of embedded edge servers with limitless scalability for today and tomorrow. The COM-HPC specification defines five different module sizes, with the largest Size E (Server Type) serving next-gen headless edge servers and accommodating up to 8 DIMMs.
